Home Glass Machine Glass Drilling Machine Three Heads Glass Drilling Machine
Automatic Vertical Glass Sandblasting Machine
Automatic Vertical Glass Sandblasting Machine
Back to products
Double Heads Glass Drilling Machine
Double Heads Glass Drilling Machine

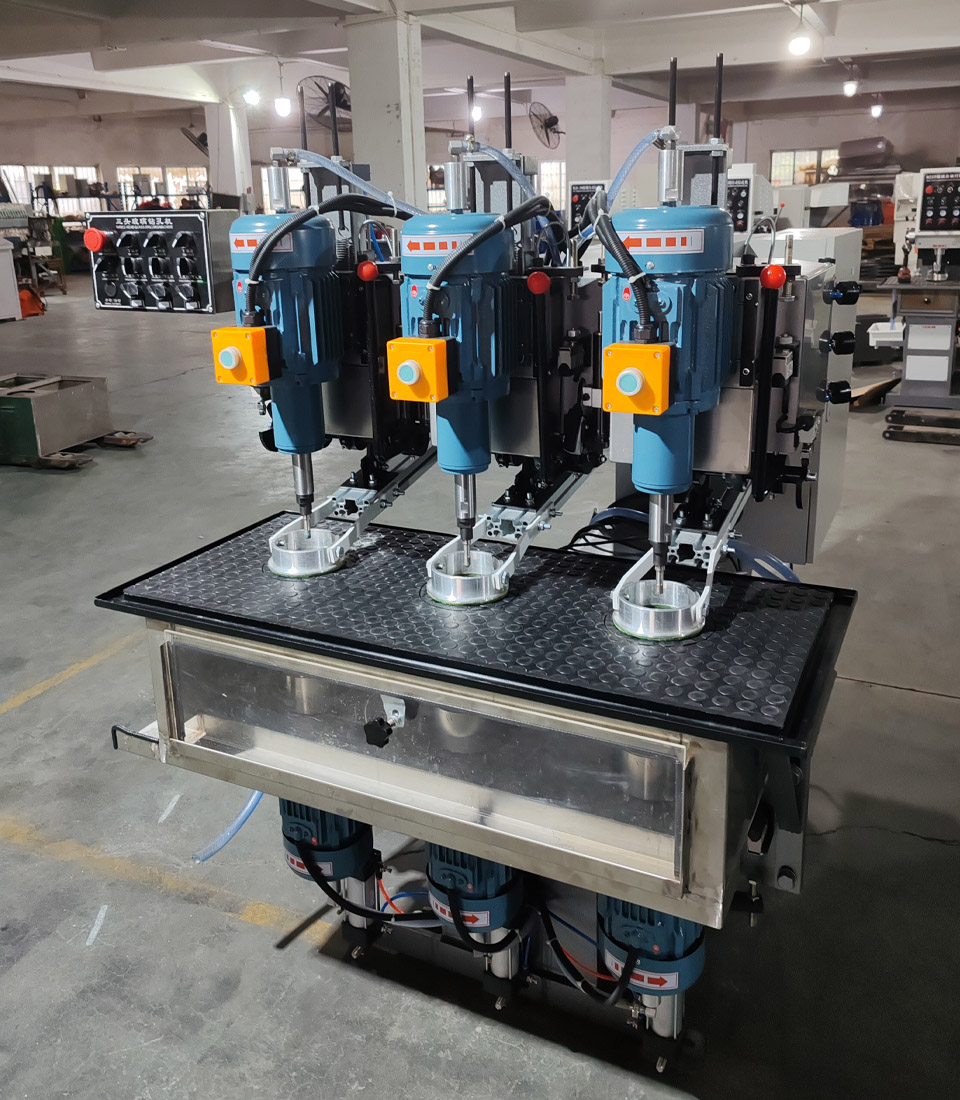

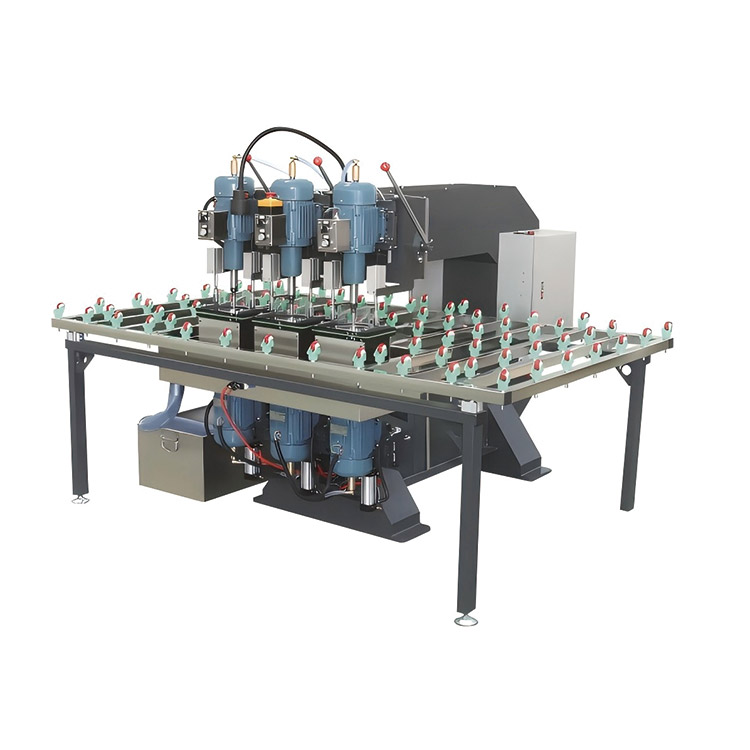

Three Heads Glass Drilling Machine

Product Enquiry
Compare
Add to wishlist
Category: Glass Drilling Machine
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

The equipment can efficiently batch process products with multiple different apertures on a piece of glass, avoiding the need to constantly change drill bits. It saves space and labor compared to three single-head drilling machines, and has a more competitive price. It has a simple structure, convenient maintenance, and easy operation. The working floating table can be pneumatically raised and lowered. The machine works in the motor-driven direct feed mode, and the drill bit speed can be adjusted by adding a frequency converter. It is suitable for drilling holes in flat glass as well as cylindrical decorative glass such as glass cups and lamps.

Power 11 kW
Maximum processing size 2200 x 2900 mm
Drilling diameter 5-60 mm
Glass processing thickness 3-25 mm
Main unit dimension 1950 mm x 1350 mm x 1750 mm
Floating frame dimension 2200 mm x 1500 mm
Weight 1000 kg
