CNC Aluminum Profile Cutting Drilling Milling Machining Center is primarily designed for the cutting, drilling, and milling of thermal break aluminum door and window profiles, as well as certain industrial aluminum profiles. It enables hole and groove drilling and milling operations on all four sides of the profile, and supports line engraving. Additionally, the machine allows for cutting profiles at any angle between 45° and 135°.
* Designed to complete the processing of various openings in door and window profiles in a single operation, including adhesive holes, nail holes, drainage holes, handle apertures, lock boxes, door lock body apertures, and installation holes.
* Supports data integration with door and window design software, enabling intelligent and interconnected production.
* Supports the batch processing and mixed processing of various door and window profiles, including frames, sashes, mullions, and screen frames.
* Equipped with barcode printer, it enables real-time printing of automatically affixed material labels, achieving the standardization of process information identification. This facilitates material management and seamless integration with enterprise ERP management software.
Technical Parameters
| Model | W6 |
| Saw Blade Specification | Φ550mm |
| Saw Speed | 3000r/min |
| Milling Speed | 0-1500mm/min |
| Processing Length | 350-6800mm |
| Cutting/Milling Width | 150mm |
| Cutting/Milling Thickness | 150mm |
| Feeding Speed | 0-100m/min |
| Cutting Angle | 45/90/135 Degree |
| Overall dimensions | 17000×3000×2900mm |
| Working Pressure | 0.6-1.3MPa |
| Control System | CNC |
| Function | Cut aluminum profile |
| After-sales Service Provided | Engineers available to service machinery overseas |

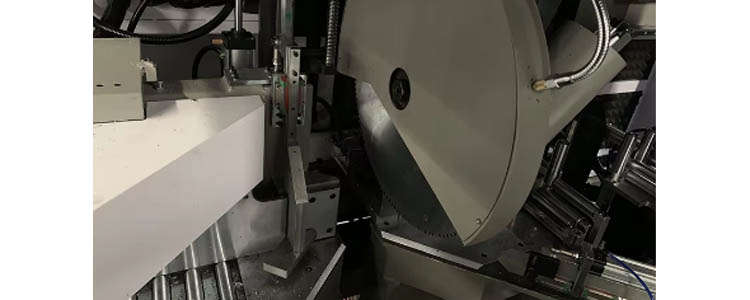

Ultra-long processing lifespan carbide saw blades
High-precision spindle and saw blade ensure cutting quality and can achieve any cutting angles of 45°-135°

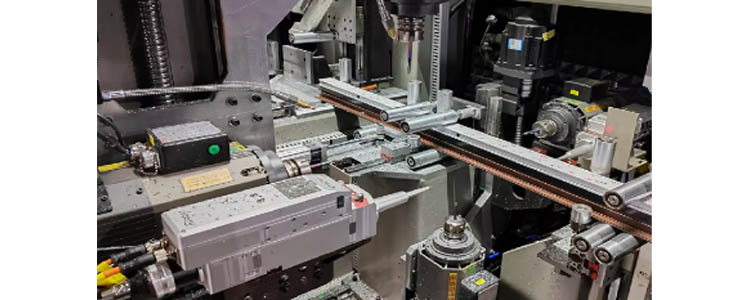

4 station drilling&milling spindle unit
Can complete the processing of various openings in door and window profiles in a single operation, including adhesive holes, nail holes, drainage holes, handle apertures, lock boxes, door lock body apertures, and installation holes.
CNC feeding system
The feeding and discharging system is fully servo controlled, fast and accurate.
Intelligent clamping system
Robotic arm can securely grip profiles at any angle from 0 to 360 degrees, fulfilling the clamping and feeding needs for a variety of profiles.
Packing & Delivery
Professional package of mitre saw cutting machine:
1. Whole film packaging mitre saw cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
