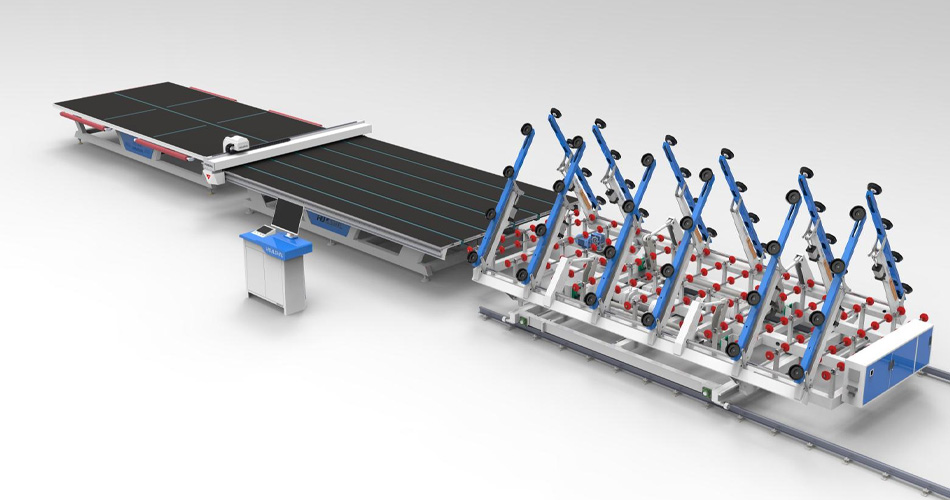

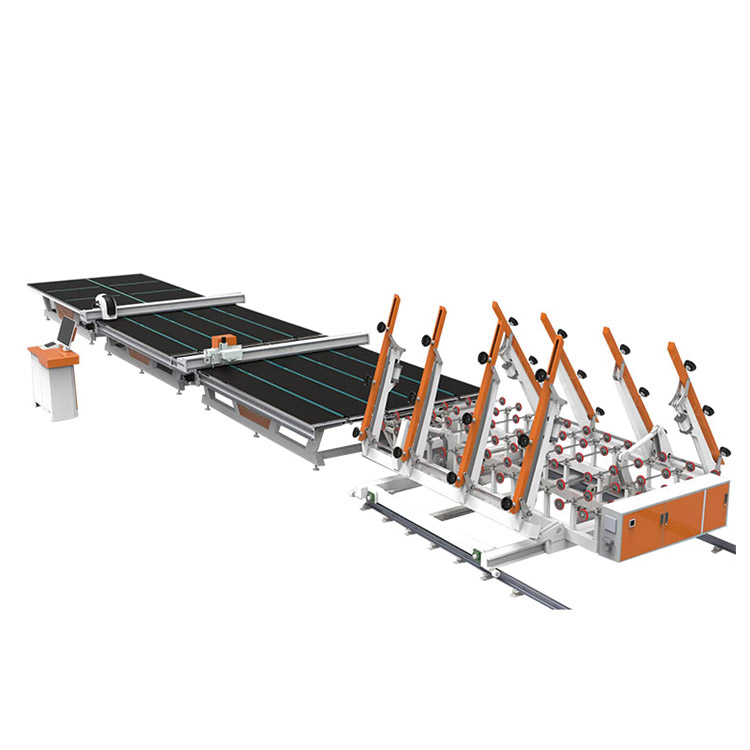

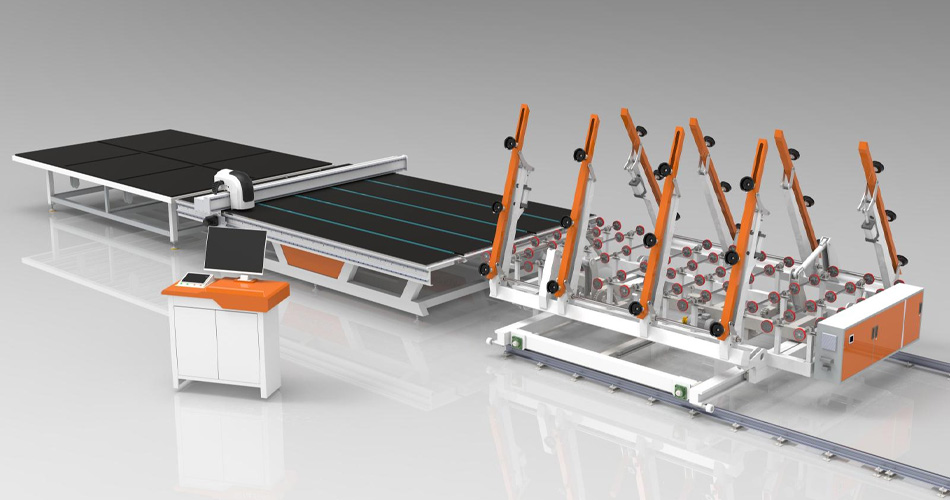

Glass cutting line has the characteristics of fast cutting speed, low cost, simple operation and high cost performance. The advanced mechanical structure supporting cutting and optimization system greatly improves the stability of the cutting machine and the cutting quality and optimization rate of glass. It is suitable for architectural glass, furniture glass, craft glass, decorative glass, cabinet glass, glass mirror, etc.

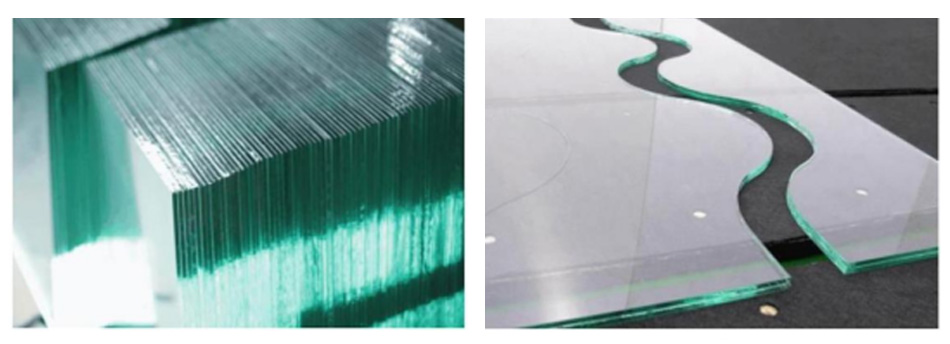

Cutting finished product type：
| Item | Item description | |
| Countertop height | 880±30mm (foot adjustable) | |
| Power Requirements | Three fires and one ground wire 380V ( special voltages should be communicated in advance ) | |
| Installed power | About 6kw | |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min | |
| Glass size | MAX.2700*2100mm | |
| Glass thickness | 3～19mm | |
| Cutting head speed | 0-2 0 0M/min ( can be set ) | |
| Cutting bridge speed | 0-2 0 0M/min ( can be set ) | |
| Cutting acceleration | ≥8m/s² | |
| Cutting knife holder | cutting knife can rotate 360 degrees(accurately cut line and special shape) | |
| Cutting accuracy | ≤±0.3mm/m(based on the cutting size before breaking) | |
