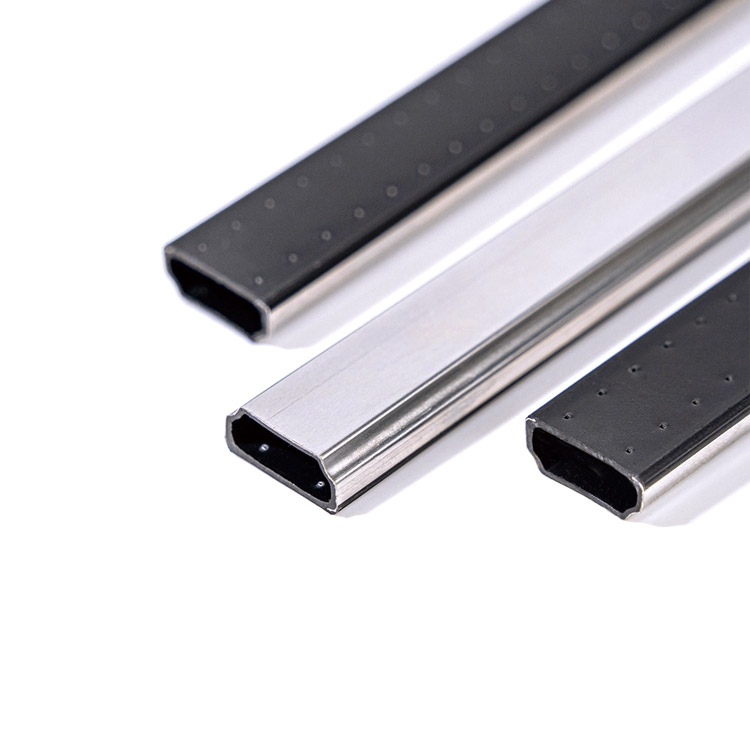

Co-Extruded Warm Edge Spacer

1.Product Introduction1..C

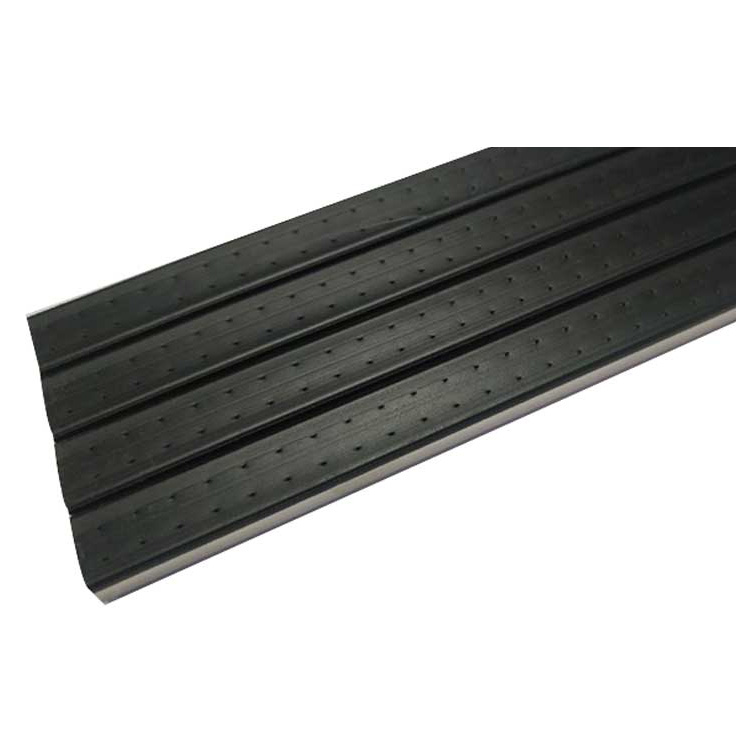

Co-extruded warm edge spacer surface is designed to form a corrugated reinforced structure, and the traditional polyvinyl chloride (PVC) is replaced by the heat-insulating material polypropylene (PP), which makes the overall weather resistance and heat insulation of the warm edge strip substantially improved. The thermal conductivity of theCCo-extruded warm edge spacer is only about 2% of that of the traditional aluminum spacer.
2.Product Parameter
Bendable, corner fittings available
Wall thickness: 0.60mm
Height: 7mm
Models: 6A, 8A, 9A, 10A, 12A, 14A, 15A,
16A, 18A, 19A, 20A, 22A, 24A, 27A
Length: 5m
Inserts and corner fittings: steel and nylon

3.Product Advantage
1.Co-extruded warm edge spacer, passed the pressure difference test, ultraviolet aging test, etc.
2. Its high-quality, high-strength, low-thermal-conduction insulation material is combined with precision stainless steel profiles with a thickness of only 0.1mm.
