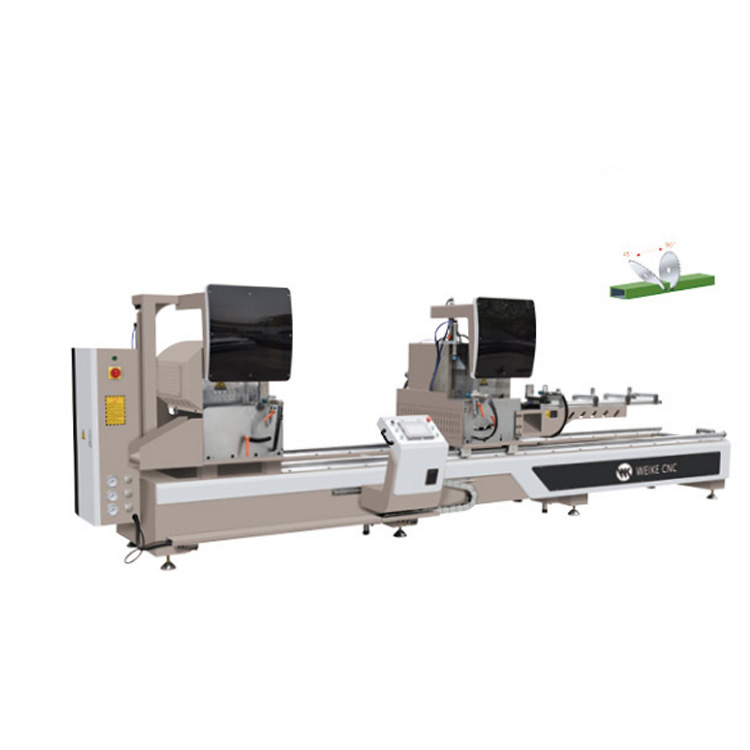

Main Feature
◎Used for cutting aluminum alloy doors and windows, curtain wall profiles. ◎The CNC fixed-length device is used to accurately display the length of the cut profile.
◎Support door and window optimization software data import.
◎The high-precision spindle makes the saw blade rotate stably.
◎The gas-liquid damping cylinder realizes uniform feed speed regulation and stable movement. ◎Automatic lifting of the protective cover makes work safe and convenient.
◎The feed system adopts imported linear guide rail pairs, which have high accuracy and long life.
◎It has the functions of automatic lifting, automatic measuring of material height, and avoiding cutting tail material.
Main Specification and Technical Parameter
◎Power supply/power： 380V50Hz/2×2.2KW
◎Speed： 2800r/min
◎Working pressure： 0.5～0.8Mpa
◎Air consumption： 200L/min
◎Saw blade specifications: Φ500×Φ30×4.4
◎Sawing length： 280mm～6000mm
◎Sawing width： 150mm

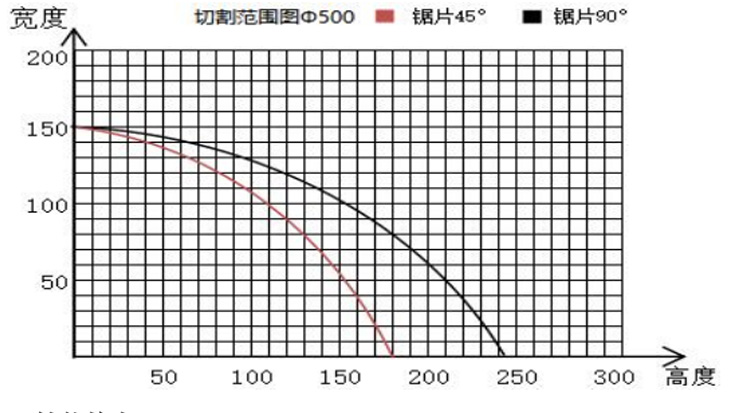

◎Sawing height： Φ500 45°180mm，90°240mm
◎Sawing angle： 90°、45°
◎Dimensions：5800×1500×1700
