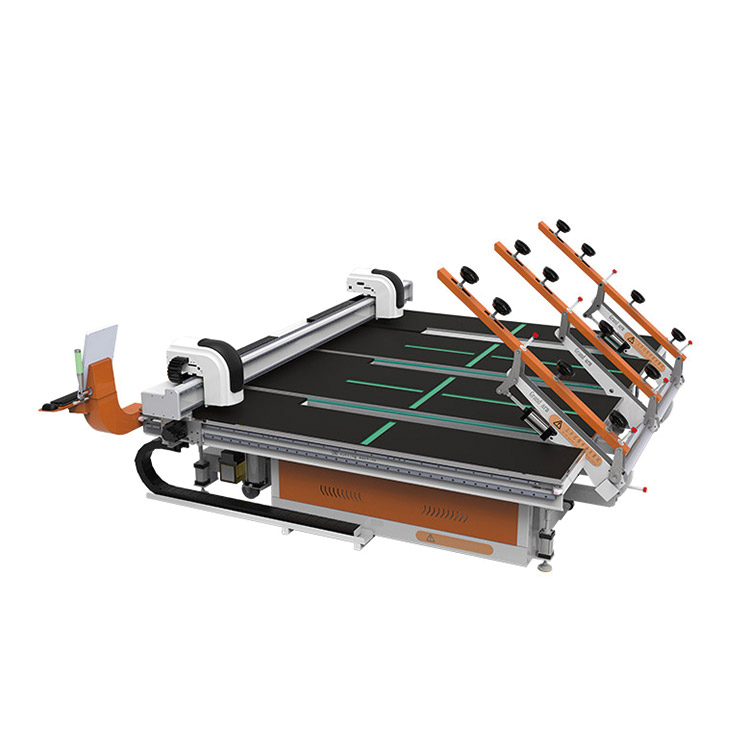

2721 cutting machine has functionsautomatic loading,automatic pressure controautomatic edge finding, optimization softwareair flotation system, with breaking table.360 degree remote control walking, with theadvantages of small footprint, easy mobility, andhigh efficiency.

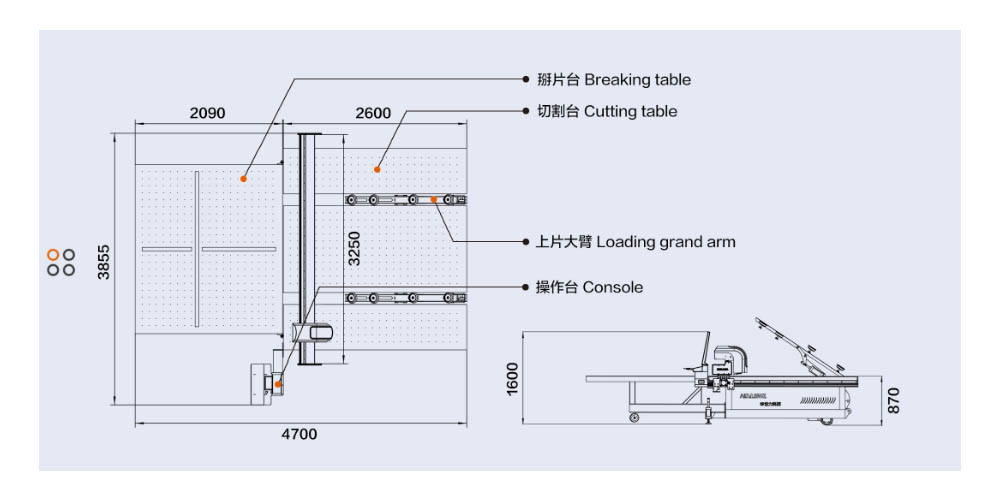

Machine parameters
| Machine type: 2721 |
| Cutting range: 2700x2100mm |
| Floor area size: 4700x3855mm |
| Cutting thickness: 3-19mm |
| Cutting speed: 0-200mm/min |
| Table height: 870mm (adjustable) |
| Console height: 1000mm |
| Cutting table size: 2600 x2860mm |
| Splitting table surface: 2090 x2400 |
Features:
1.Loading, cutting and breaking on the same table
2.Automatic loading with suck discs
3.Cutting pressure automatic adjusted according to glass thickness
4.Cutter head 360 degree rotating
5.Water proof surface panel, stainless steel side covered, water and deformation resisting
6.High quality felt, perfect level, anti-static
7.Self-lubricating guide rail
8.Air filter for keeping the oil clean
- Automatic loading：
The telescopic arm and the big arm extend out at the same time, and automatically find the glass. After the system detects the suction cup firmly, put the glass back to the table automatically, and the upper plate is finished.
- Intelligent control:
one button control can finish the loading, cutting and labeling at one time.
- Automatic cutting：
Intelligent optimization cutting software, optimization rate up to 99%, automatic cutting, high precision, fast speed.
- Automatic labeling：
Intelligent automatic labeling，labeling follows the head of the cutting machine,which has the advantages of fast speed and high stability.
- Fault detection:
automatic fault detection and alarm system, real-time uploading of fault causes can quickly solve the fault.
- Optimization software:

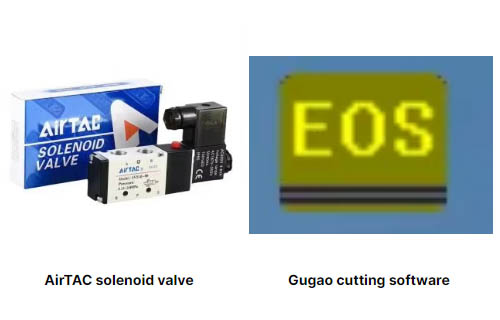

Using Italian Optima optimization software, the cutting accuracy is higher.
