1. Product Description
This machine offers simple operation, reliable performance, advanced technology, and easy maintenance.

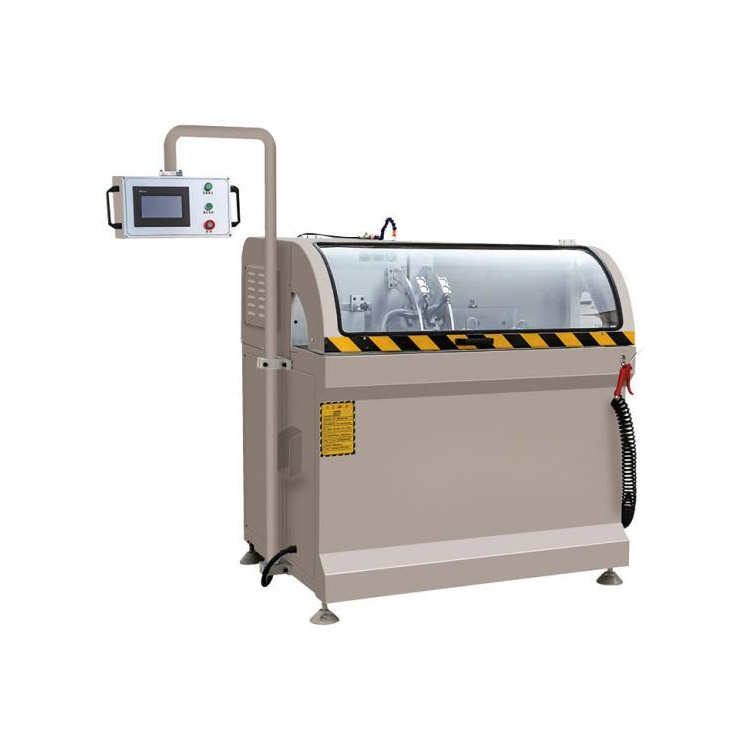

This machine is primarily used for cutting aluminum door and window corner bracket profiles, and can also be used for cutting thickened and lengthened curtain wall profiles and plastic profiles.
The cutter utilizes imported carbide saw blades, resulting in high cutting speeds, high productivity, and high precision.
The machine’s feed motion pair utilizes linear bearings, resulting in low resistance and high precision.
The feed mechanism utilizes an automatic feed system, offering stability, reliability, and high efficiency.
It utilizes an imported PLC programmable control system and CNC devices.
It is suitable for high-volume cutting of aluminum doors and windows and plastic profiles.
It features a high degree of automation, with pneumatic control for work clamping and blade advance and retraction, ensuring easy operation, safety, reliability, and high productivity.
2. Technical parameter
| Voltage/HZ | 380V/50HZ (according to customer） |
| Total Power | 2.2Kw |
| Motor speed | 2850r/min |
| Sawing specifications | Φ500×Φ30mm×4.4mmZ=100 |
| Maximum cutting range | Wide 125mm × High140mm |
| Cutting angle | 90° |
| Dimensions | 1700×1400×1500mm (bracket approximately 4000mm) |
