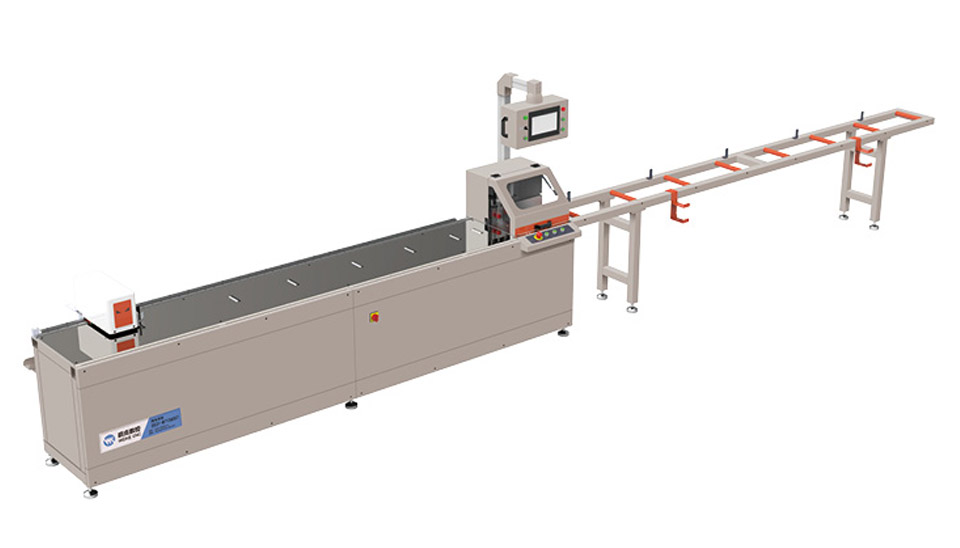

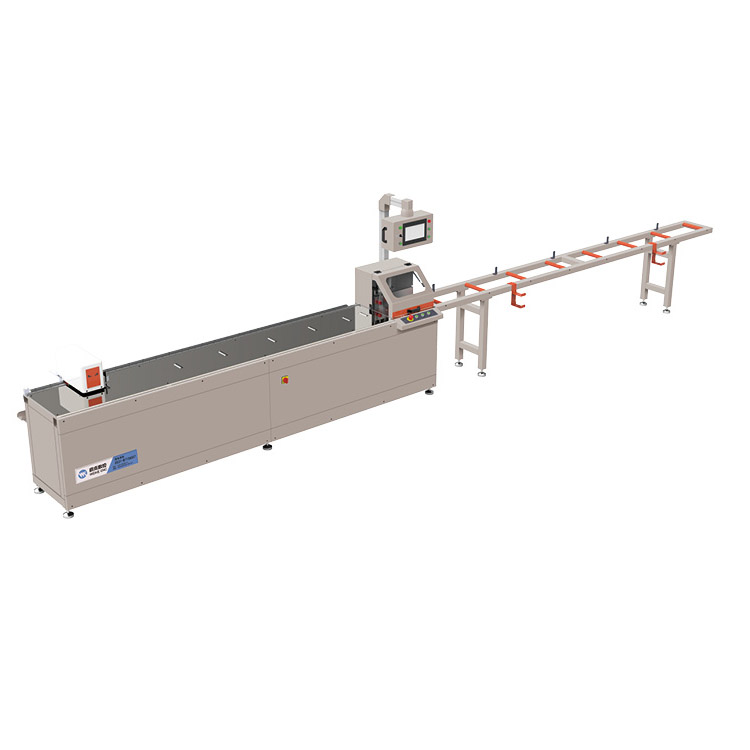

Bluetooth wireless transmission 90° glass slat cutting saw

Product Descrption

1-1 This machine is mainly used for 90° cutting of aluminum alloy lamination, one bed better ensure the cutting accuracy, the bed adopts national standard 4 mm square pipe welding, the whole machine quenching aging treatment, eliminate welding stress and deformation. High-precision calipers transmit measurement data wirelessly, and the measuring system adopts high-precision servo motor + precision reducer + precision rack to achieve rapid positioning. The material support frame on the right side is made of weighted columns and metal transmission wheels.

1-2 double closed loop control, automatic length correction, magnetic grid ruler selection accuracy 0.002 mm

1-3 Intelligent operation of the touch screen to determine the response reception signal

1-4 The whole machine is equipped with 2 vertical compression cylinders and 1 horizontal compression cylinder to ensure the precision of the lamination (there will be no inclination and length difference). 2 front and rear push cylinders, 1 around push cylinders. Achieve easy access to materials.

1-5 Add 7 extension supports to the machine. Add the function of pressure line conveying to prevent slant. All sheet metal of the machine is bent and welded with galvanized sheet. The adhesion of the sprayed surface is strong, and the paint will not fall off.

1-6 This machine uses Guangdong Tianyang 1.1KW spindle motor. Imported alloy saw blade with outer diameter of 350, cutting height of 90 mm, minimum length of line 185MM, maximum length of line 2900MM.

1-7 Bluetooth wireless transmission caliper standard is 3000mm effective travel is 2800mm. A section ruler is optional for measuring small Windows and fans

1-8 cantilever operation box, more suitable for human body operation and easy to watch the transmission data, avoid the transmission of data twice.
