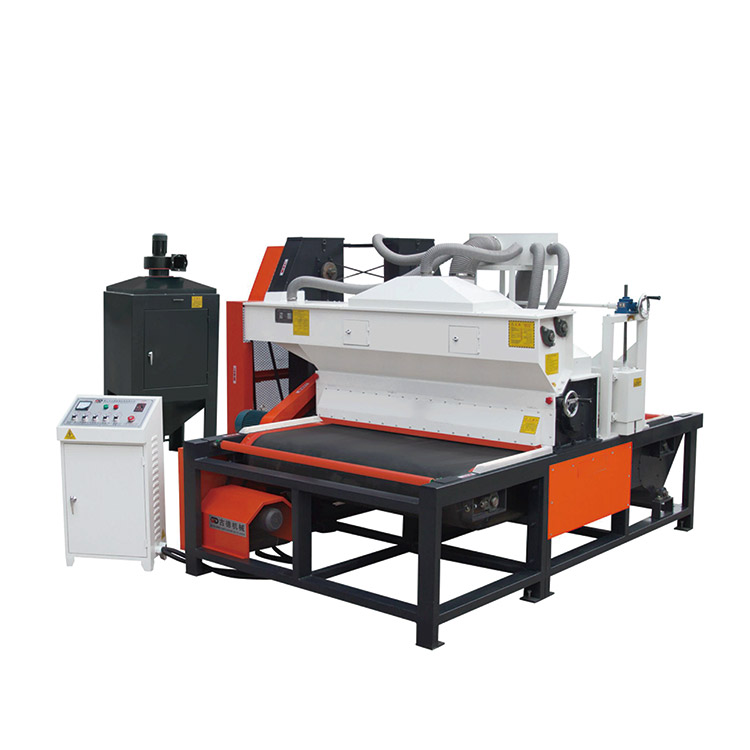

Automatic Vertical Glass Sandblasting Machine

1.  Product Description

Full-automatic glass sandblasting machine contains dust collecting–sand sweeping–transportation gritfeeding–sandblasting–sound attenuation–grit filtration–grit equalization–grit storage–shakeout. Each production process section is completed automatically. Improved working environment and reduced labor intensity. Due to greatly reducing production costs, the machine has been accepted and selected by most customers. This machine is suitable for sanding the surface of glass, acrylic, stone, ceramic, metal, and other materials. Five power motors and control circuits are installed to control the entire glass sandblasting machine. The fastest processing speed in China, 0.7m/min or more, and low noise. The longest working face in the industry, 3 station loading glass structure, and easy to operate. The frame structure design is reasonable, and the overall rigidity is excellent. The only sandblasting machine with a separable structure, convenient disassembly and assembly, and convenient transportation. The sand is circulated in the machine and filtered three times to ensure that the ash content of the sand meets the quality requirements.

2. Technical parameter

3.Main component parts

The control panel is easy to operate, and the precision processed fingerprint free aluminum panel is beautiful and elegant.

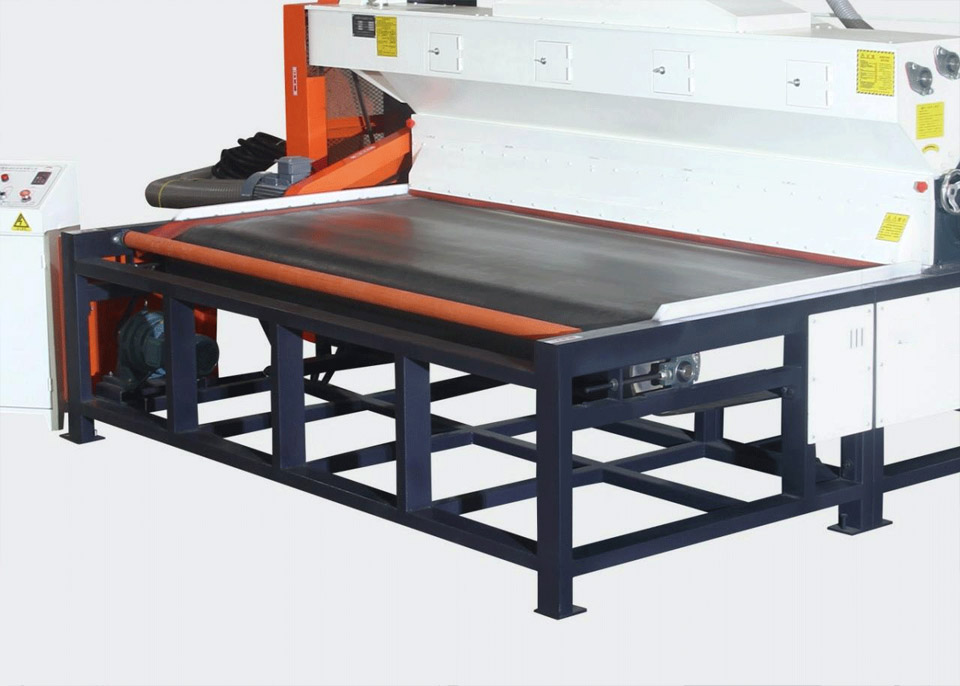

There are three working positions at the feeding section, which is convenient for workers to operate.

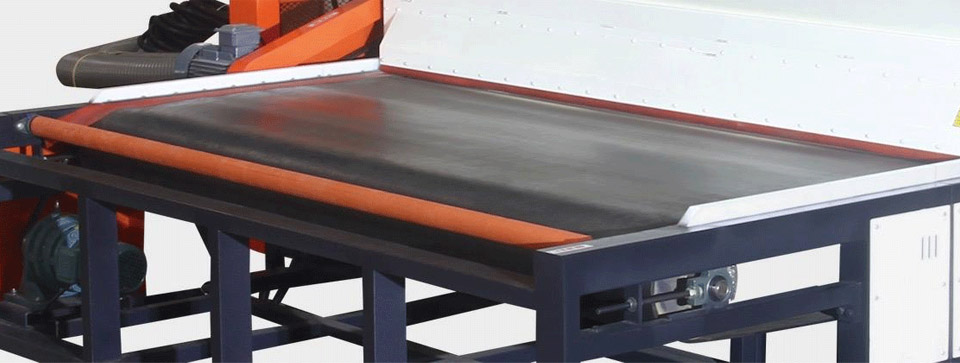

Long black conveying belt, which is convenient for conveying big sheet of glass. The conveyor belt adopts integral seamless wear-resistant rubber belt and frequency conversion speed regulation, which greatly reduces the glass scratches during the production process. Thickened material, with a service life of over ten years.

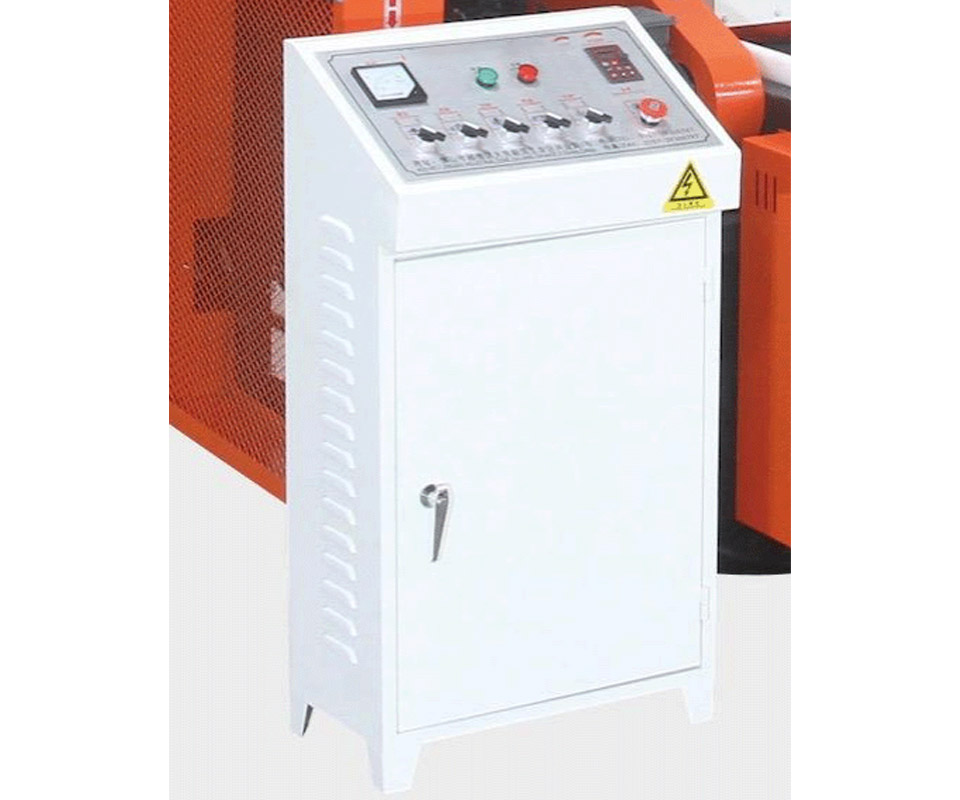

Independent electric box, separated from the machine, ash free, easy to place, not affected by the machine, and more durable electronic components. Reasonable design and convenient operation.

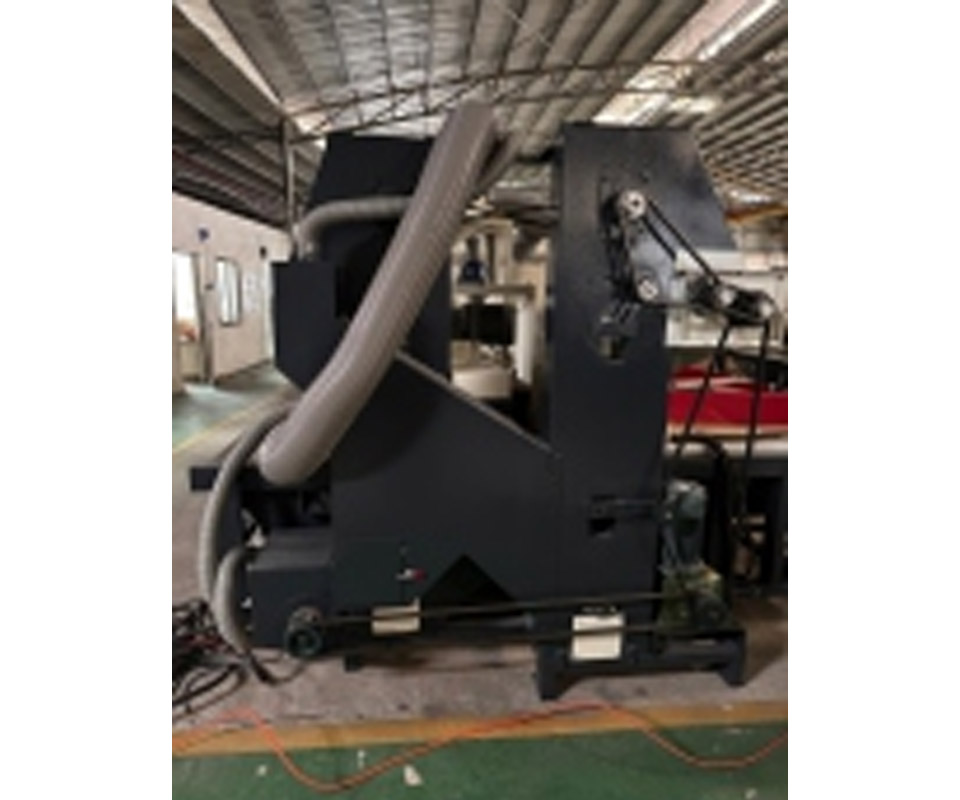

Dual sand lifting tower with filter, in case sand block.

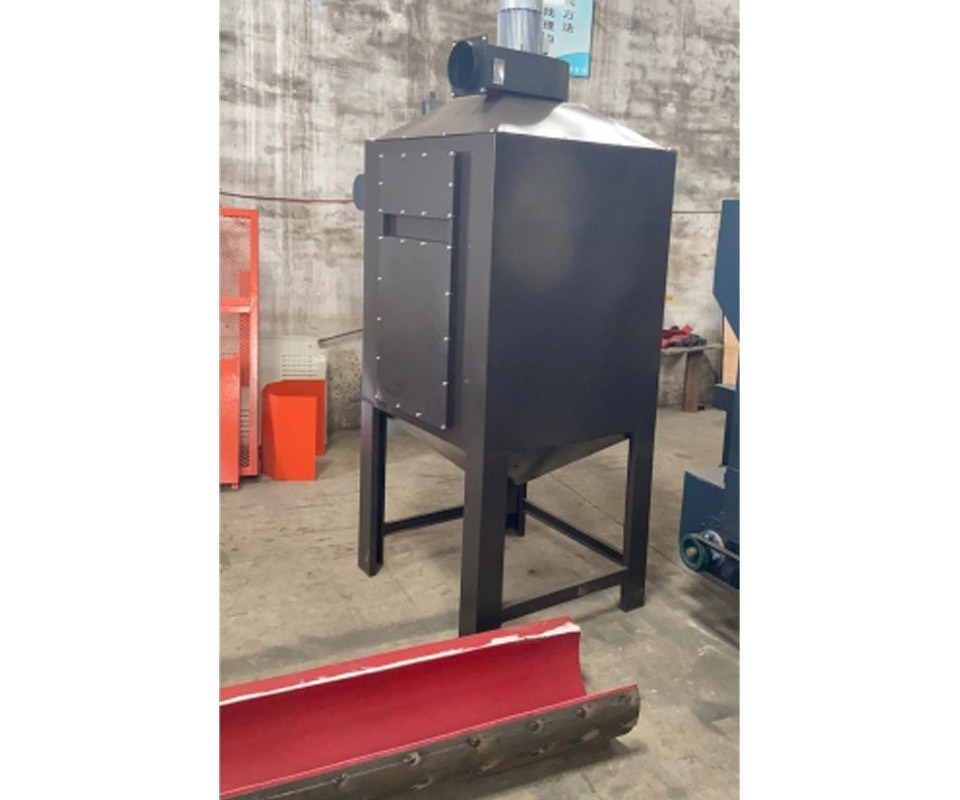

Dust removal cloth bag is artificially sewn by new fabric brushing, which is more durable and has a better dust collection effect. Dust sand bag qty: 16pcs.

This new design has obtained utility model patent certificate.

Advantage: This new design of broken glass separation system fundamentally solves broken glass cleaning problem that has troubled operator so many years. No need to stop production to

clean broken glass and sand. After glass broken, the machine can continue to produce, and the broken glass and sand will be automatically separated. The broken glass is automatically

discharged from the machine, and the separated sand is automatically returned to the machine for recycle use. It greatly reduces the labor intensity and improves the production efficiency，

reduce machine damage risk,extended machine service life.
