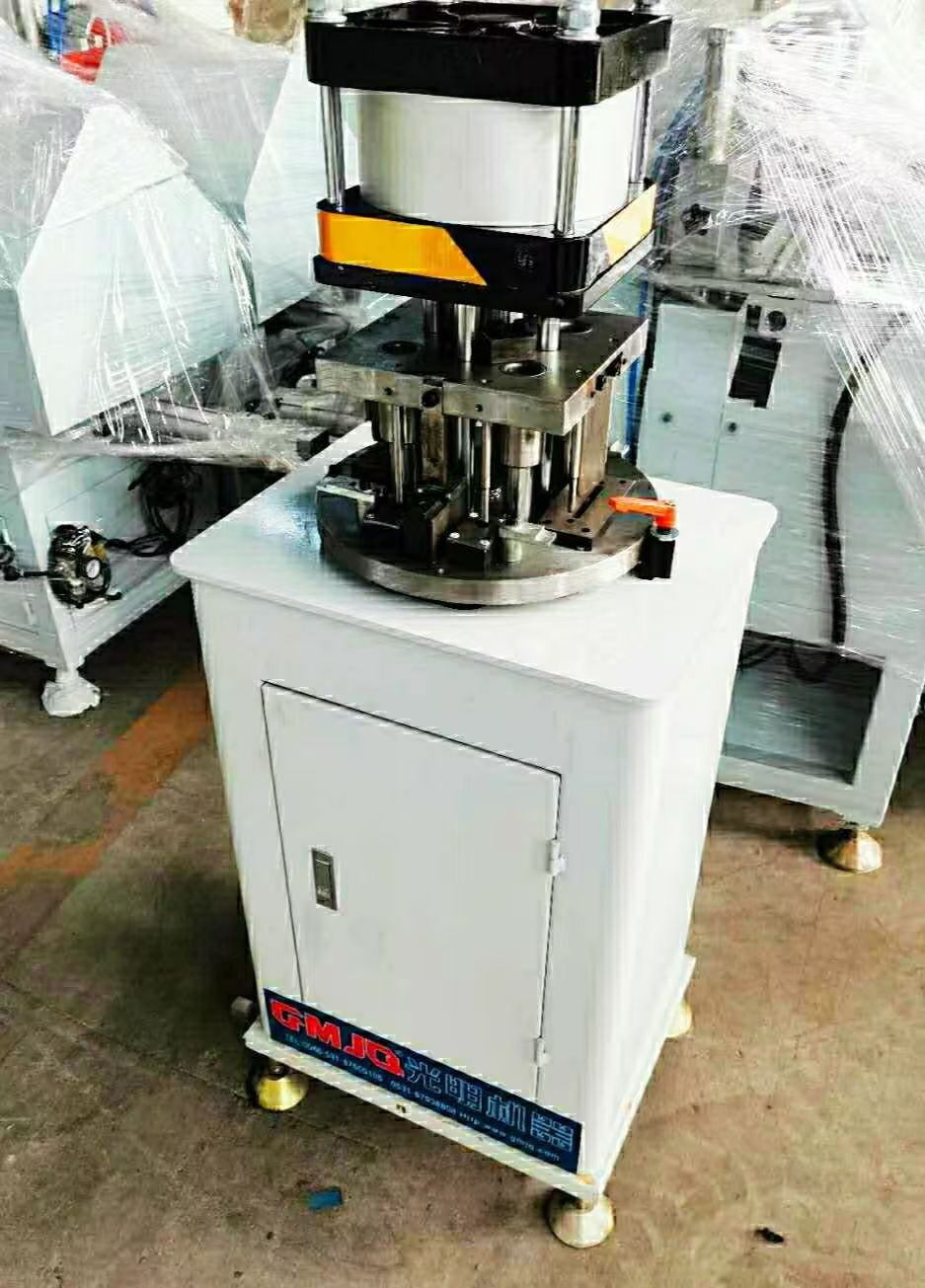

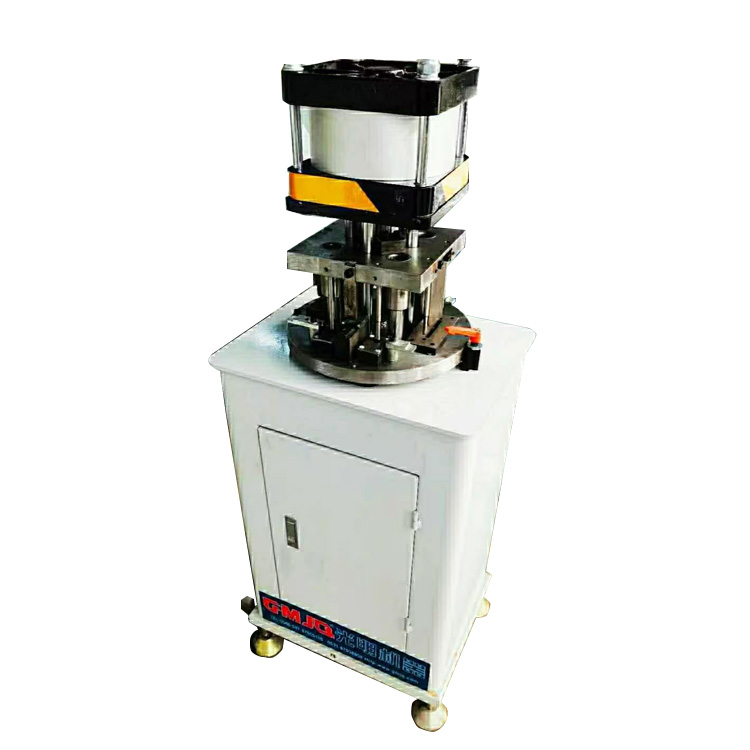

Processing Performance and Features:
Used for stamping the mounting holes and grooves of hardware parts for side-hung aluminum doors and windows (limited to 20mm European standard C-groove);
Pneumatic foot valve control is adopted for power, ensuring stable operation;
Equipped with 5 working positions, capable of processing the handle mounting groove of side-hung sash material, water tank hole, mullion hole, sash angle cutting, and end punching (Φ10, Φ6) of the transmission device.
Main Specifications and Technical Parameters:
Nominal stamping pressure: 16KN
Number of working positions: 5
Stamping stroke: 30mm
Mold overall dimension: 340×240×500mm
Air source pressure: 0.6～0.8Mpa
