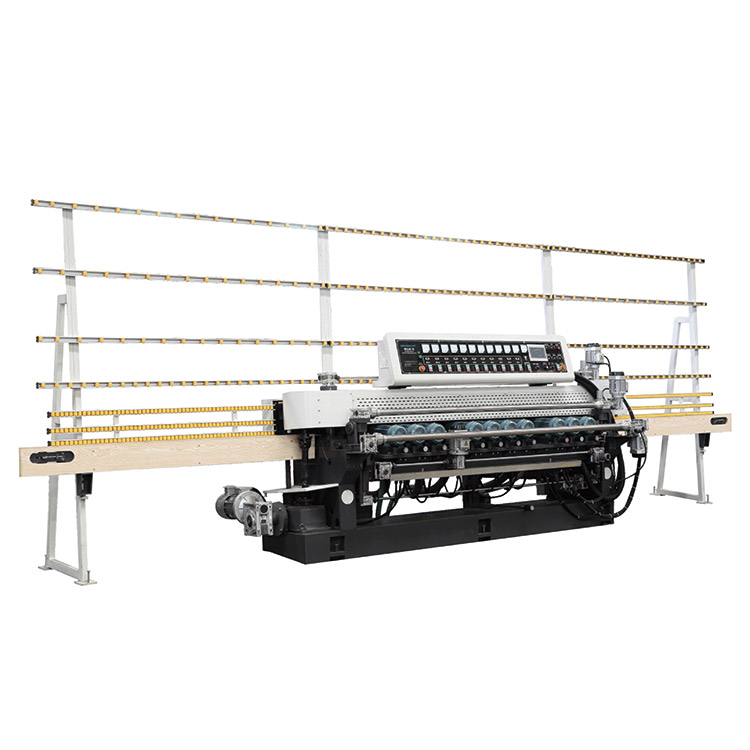

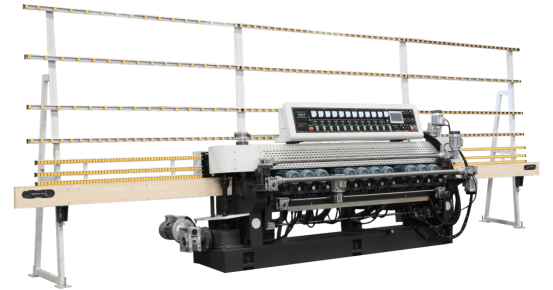

The 11-Motor Glass Beveling Edging Machine is a highly efficient glass processing equipment primarily used for straight beveling and round bottom edge processing of flat glass. It can complete rough grinding, fine grinding, and polishing processes in a single operation, making it suitable for applications in the construction, decoration, and decorative glass industries. Equipped with 11 motor, it offers high processing efficiency; it ensures high precision, guaranteeing smooth edges and straightness; its sturdy and durable structure is easy to operate, supporting adjustable processing speed, angle, and dimensions to accommodate different thickness requirements.
Product Parameters
| Beveling angle(mm) | 3°~45° |
| Total power (kW) | 27.2 |
| Voltage/Hz | 380V/50Hz |
| Total weight (kg) | 4800 |
| Speed (m/min) | 0.8~5 (narrow beveling 7m/ min) |
| (L×W×H) Overall dimension (mm) | 6800×1500×2400 |
| Min. processing glass size (mm) | 20×20 |
| PLC&TouchScreen Brand | Delta&Siemens&Schneider |
| Max. processing glass size (mm) | 3000 |
| Table height (mm) | 800 |
| Processing glass thickness (mm) | 3~19 |
| Max. beveling width (mm) | 50 |
