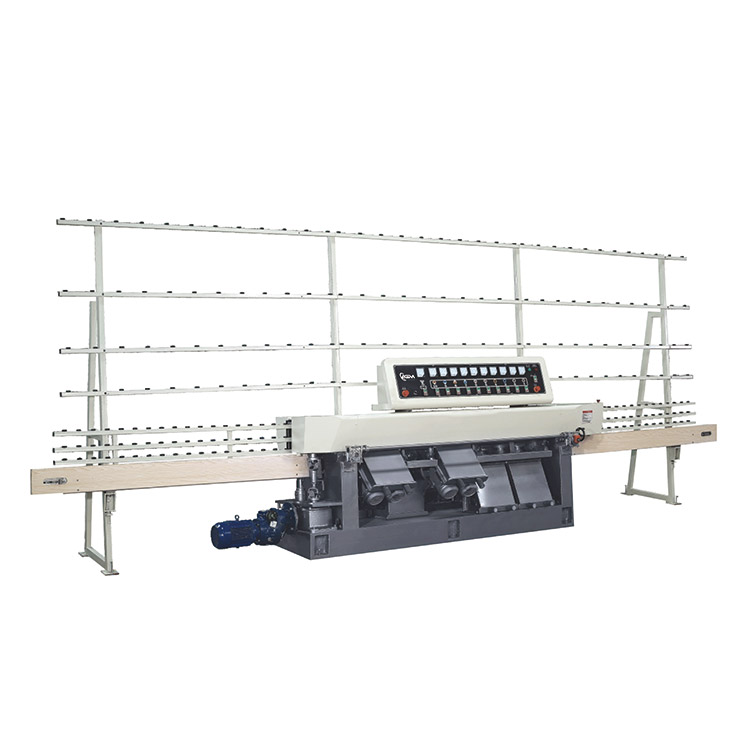

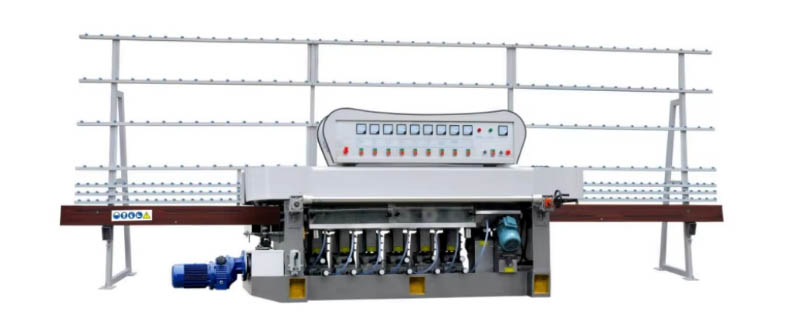

The machine is specialized in grinding the flat glass. It can realize the rough and fine grinding 45 degree and polishing the flat edge at one time. Its convey driver adopts the stepless regulator, which can extend the adjustment range. It is stable adjustment, front and back beam, the machine structure of bottom and body adopt the iron steel materials. The machine working stable, easy operation, function stable, quality reliable, it has very fair reasonable price.
Technical Parameters
| Voltage/HZ | 380V/50HZ |
| Range of speed | 1.2～6 m/min |
| Min. processing glass size | 80*80mm |
| Max. processing glass size | 3000*3000mm |
| Processing glass thickness | 3～25 mm |
Functions:

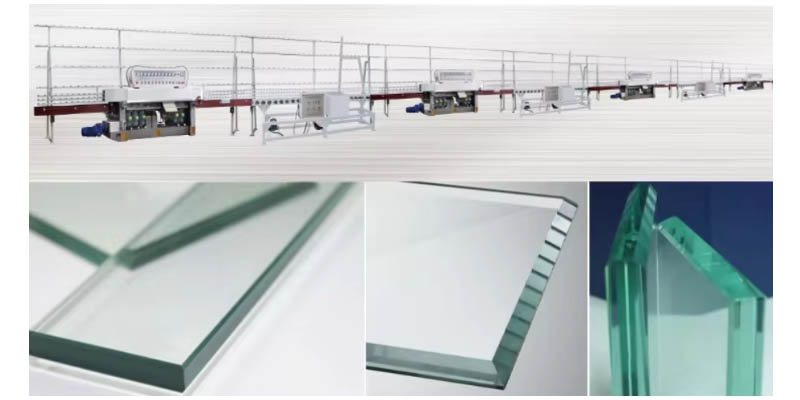

1. Suitable for grinding straight edge of different size and thickness flat glass .
2. The coarse grinding, fine grinding, clamfering and polishing can be finished at one time. The #1-#5 grinders can be swung 0~45°as request to grinding straight edge with angle 45°.
3. Working speed and working load can be adjusted smoothly by continuously variable mechanism transmission
4. Adjust front rail to match different glass thickness.
5.The machine is equipped with automatic clamping system and voltage stabilizing system.
6.With easy operation,high precision and efficiency,this machine becomes one of indispensable equipment for glass procession.
