Product Introduction

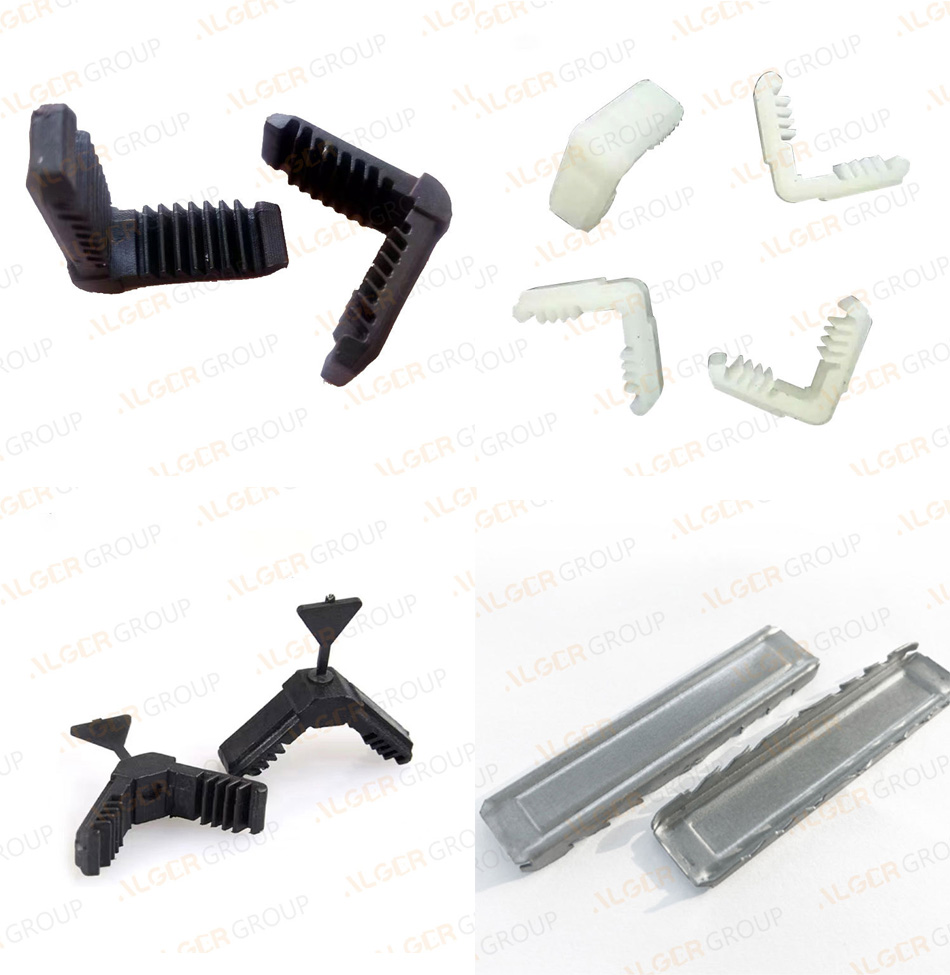

The plastic Corner Key is a plastic insert designed according to different specifications of special aluminum spacer bars for insulating glass. The special Steel Connector for insulating glass is a connector designed for various high-frequency bendable aluminum spacer bars.
Colour：Black / Gray / White
Product Specification
| Plastic Corner Key |
| Model | Size | Qty/Small Pack | Qty of Pack/Big Bag | Qty/Big Bag |
| 6A | 5.5mm | 2000 | 25 | 50000 |
| 8A | 7.5mm | 2000 | 20 | 40000 |
| 9A | 8.5mm | 1000 | 30 | 30000 |
| 10A | 9.5mm | 1000 | 20 | 20000 |
| 11A | 10.5mm | 1000 | 25 | 25000 |
| 12A | 11.5mm | 1000 | 25 | 25000 |
| 14A | 13.5mm | 500 | 30 | 15000 |
| 15A | 14.5mm | 500 | 30 | 15000 |
| 16A | 15.5mm | 500 | 30 | 15000 |
| 18A | 17.5mm | 500 | 20 | 10000 |
| 19A | 18.5mm | 500 | 20 | 10000 |
| 20A | 19.5mm | 500 | 20 | 10000 |
| 22A | 21.5mm | 500 | 20 | 10000 |
| Steel Connector |
| Model | Size | Qty/Bag | Qty of Bag/Box | Qty/Box |
| 6A | 5.5mm | 1000 | 10 | 10000 |
| 7A | 6.5mm | 1000 | 5 | 5000 |
| 8A | 7.5mm | 1000 | 5 | 5000 |
| 9A | 8.5mm | 1000 | 5 | 5000 |
| 10A | 9.5mm | 1000 | 5 | 5000 |
| 11A | 10.5mm | 1000 | 5 | 5000 |
| 12A | 11.5mm | 1000 | 5 | 5000 |
| 13A | 12.5mm | 1000 | 5 | 5000 |
| 14A | 13.5mm | 500 | 5 | 2500 |
| 15A | 14.5mm | 500 | 5 | 2500 |
| 16A | 15.5mm | 500 | 5 | 2500 |
| 17A | 16.5mm | 500 | 5 | 2500 |
| 18A | 17.5mm | 500 | 5 | 2500 |
| 19A | 18.5mm | 500 | 5 | 2500 |
| 20A | 19.5mm | 500 | 5 | 2500 |
| 22A | 21.5mm | 500 | 5 | 2500 |
| 23A | 22.5mm | 500 | 5 | 2500 |
| 24A | 23.5mm | 500 | 5 | 2500 |
| 25A | 24.5mm | 500 | 5 | 2500 |
| 27A | 26.5mm | 500 | 5 | 2500 |
| 30A | 29.5mm | 500 | 4 | 2000 |
Product Usage
Corner Key is used to connect spacer frames during the the production of insulating glass. They are designed according to the size of the spacer bars.
Product Advantage of Plastic Corner Key
1.Does not occur any deformation on the spacer bar.
2.Fitting on the spacer bars easily.
3.Minimize impermeability.
4.Prevent falling sealant inside of the spacer bar.
5.Breaking or breaking off does not occur.
Product Advantage of Steel Connector
1.Thanks to its design, no deformation occurs in the spacer.
2.It can be installed easily and is difficult to remove.
3.The moisture inside the profile allows to pass in the middle of the spacer.
4. Thanks to its special mixture, there is no breaking and breaking.
5.Its surface and burr-free form is smooth.
